Principles

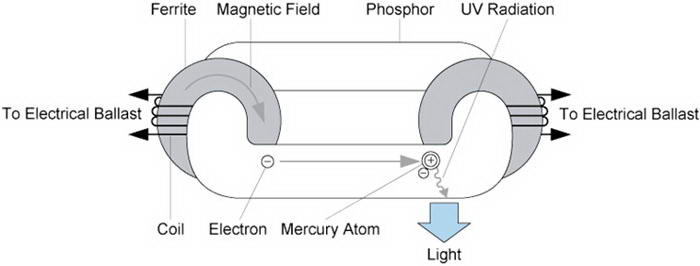

Based on these well-known principles, light can be generated via a gas discharge using simple magnetism.
Electromagnetic transformers, constructed from rings of metal coils and powered by a high frequency electronic ballast,
create an electromagnetic field around a glass tube which contains the gas. The discharge path, induced by the coils,
forms a closed loop allowing acceleration of free electrons, which collide with mercury atoms and excite the electrons.
As the excited electrons from these atoms fall back from this higher energy level to a lower stable state,
they emit ultraviolet radiation. This UV energy is converted to visible light as it passes through a phosphor
coating on the surface of the tube. The unusual shape of an induction lamp maximizes the efficiency of
the electromagnetic fields that are generated.

Applications

• Tunnel light
• Street light
• Factory light
• Parking light
• Gas Station Luminaire
• Office and Hotel Lighting
• Industrial lighting
• Home lighting
• Outdoor lighting

Benefits

• Extremely long system life: 100,000 hours
• High luminous efficiency
• Flicker-free instant start
• High luminous efficacy: > 80 lm/W
• Very good light quality: color rendering Ra > 80
• High luminious flux over a wide temperature range, thanks to amalgam technology
• Low operating frequency: 230 kHz
• Particularly suitable for shallow luminaires
• Low luminous flux loss (30 % after 60,0000 h)
• Guaranteed start-up at low temperatures as low as –40 °C
• Direct current (DC) operation possible

Comparisons

	Induction	Flurescent	Metal Halide	High Pressure Sodium	Low Pressure Sodium
Rated Life	100,000	20,000	20,000	20,000	25,000
CRI	85	85	65	21	0
Temp Sensitive	No	Yes	No	No	No
Instant-on restrike	Yes	Yes	No	No	No
Resistant to Vibration	Yes	No	Yes	Yes	Yes
Source Type	Area	Linear	Point	Point	Point
Lumen Maintenance	High	High	Low	Low	Low

Specifications

Model	Watts	Voltage	Frequency	Power Factor	Lumen	Color	CRI
ZK-JX-40W	40W	110V/220V	230KHz	0.99	2600-2800	2700-6500K	75-85
ZK-JX-60W	60W	110V/220V	230KHz	0.99	3900-4200	2700-6500K	75-85
ZK-JX-80W	80W	110V/220V	230KHz	0.99	6000-6800	2700-6500K	75-85
ZK-JX-100W	100W	110V/220V	230KHz	0.99	7500-8500	2700-6500K	75-85
ZK-JX-120W	120W	110V/220V	230KHz	0.99	9000-10200	2700-6500K	75-85
ZK-JX-150W	150W	110V/220V	230KHz	0.99	11250-12750	2700-6500K	75-85
ZK-JX-200W	200W	110V/220V	230KHz	0.99	15000-17000	2700-6500K	75-85
ZK-JX-250W	250W	110V/220V	230KHz	0.99	18750-21250	2700-6500K	75-85
ZK-JX-300W	300W	110V/220V	230KHz	0.99	22500-25500	2700-6500K	75-85
ZK-JX-350W	350W	110V/220V	230KHz	0.99	26250-29750	2700-6500K	75-85
ZK-JX-400W	400W	110V/220V	230KHz	0.99	30000-34000	2700-6500K	75-85
