Description:
High Frequency Induction Bulbs,Induction lamps, induction lighting, UL induction lamps, Low Frequency Induction Lamps, magnetic induction lights, electromagnetic induction lamp, electrodeless lamp
GA induction lightings(High Frequency Induction Bulbs) are a breakthrough for professional, general and
special lighting applications; not only because of its high luminous efficiency and excellent light quality,
but especially because of its unprecedented lifetime. System lifetime is rated at 100,000 hours,
or about 5 years (based on4000 burning hrs/year) in many applications, with a failure rate of less than 4%.
Average lifetime with 50 % survivals is rated at 100,000 hrs. With this unmatched durability, ZKlighting offers
substantial savings in direct maintenance costs, as well in indirect costs.
Principles
In conventional fluorescent lamps the electric current is supplied to the gas discharge
through the glowing electrodes. In GA Induction lighting the electrical energy is
supplied to the gas discharge by means of a high frequency electromagnetic field without any electrodes.
In conventional discharge lamps the electrodes mostly are the lifedetermining factor.
Since these electrodes are not present in GA Induction lighting, life of GA Induction lighting can be very long.

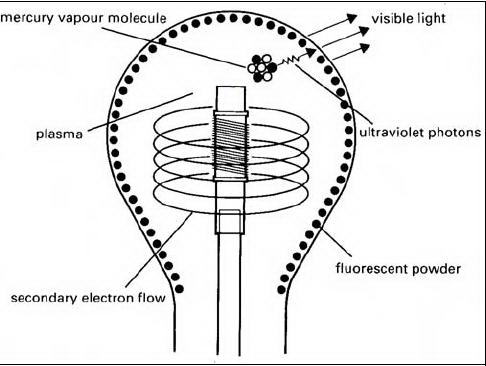

In the GA Induction lighting, the energy source –equivalent to the primary coil in the transformer– is the
lamp’s induction coil, which is powered by high-frequencyelectronics. The secondary coil is represented by
the low pressure gas discharge. The induced current causes a low-pressure mercury discharge, like in
conventional fluorescent lamps. Similar to other fluorescent lamps, the ultra violet radiation generated
in the discharge is converted to visible light by the fluorescent phosphor coating on the inside of the bulb wall.
 Applications
Typical applications of High Frequency Induction Bulbs include:
- Indoor, general lighting. Especially for places with much traffic from passengers like arrival halls in airports, railway stations and also parking garages.
- Industry, petrochemical industry, offshore.
- Cold-storage rooms
- City lighting
- Illumination of roadway signs and advertisement boards
Benefits
- high reliability and nearly maintenance free operation
- lasting high light output right through lifetime
- Low energy consumption
- increased safety: more standard luminaire construction
- economic, environment-friendly lighting in situations with long burning hours
- restful- non fatiguing light
- no danger with rotating machinery
- restful and non disturbing in operation
- automatic switch off in case of failure of lamp.
- more comfort
- extra energy saving feasible in combination with presence detectors
- suitable for security and safety lighting
- useful light immediately after switch on
- choice of color temperature
- good color rendering (Ra>80)
- constant light output over a wide
- range of ambient temperatures
Specifications
| Model |
Watts |
Voltage |
Lumen |
Power Factor |
Frequency |
Color |
CRI |
| ZK-GPX-40W |
40W |
110V/220V |
2000-2400 |
0.99 |
2.60MHz |
2700-6500K |
75-85 |
| ZK-GPX-60W |
60W |
110V/220V |
3000-3600 |
0.99 |
2.60MHz |
2700-6500K |
75-85 |
| ZK-GPX-85W |
85W |
110V/220V |
4250-5100 |
0.99 |
2.60MHz |
2700-6500K |
75-85 |
| ZK-GPX-125W |
125W |
110V/220V |
6250-7500 |
0.99 |
2.60MHz |
2700-6500K |
75-85 |
| ZK-GPX-135W |
135W |
110V/220V |
6750-8100 |
0.99 |
2.60MHz |
2700-6500K |
75-85 |
| ZK-GPX-165W |
165W |
110V/220V |
8250-9900 |
0.99 |
2.60MHz |
2700-6500K |
75-85 | |
